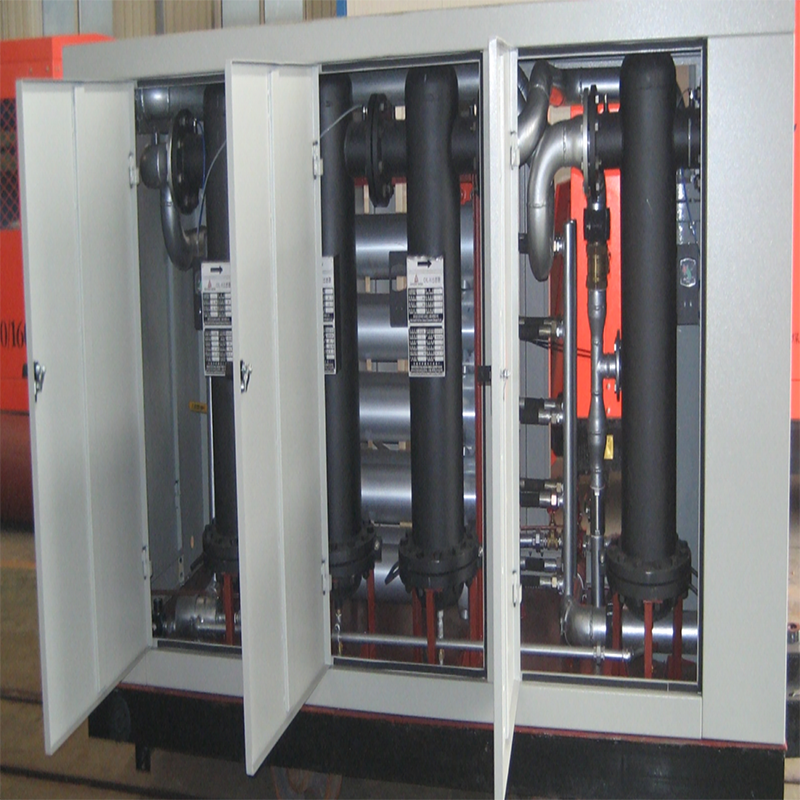

Membrane N2 Generators
Features:
Our cutting-edge Membrane N2 Generators efficiently produce high-quality nitrogen gas by leveraging the different permeabilities of gases through a specialized membrane. As compressed air enters the membrane units, oxygen, with its higher permeability, passes through the membrane walls and is released into the atmosphere, while nitrogen, having a lower permeability, is retained and collected as the desired product gas.
The operating pressure significantly influences the separation process, with higher pressures enhancing gas permeability and improving separation performance and nitrogen purity. Our Membrane N2 Generators optimize this pressure-permeability relationship, ensuring maximum efficiency and product purity through advanced membrane materials and precise control of operating parameters.
Boasting a compact design, low maintenance requirements, and reliable performance, our Membrane N2 Generators offer a cost-effective and sustainable solution for on-site nitrogen production. They deliver a consistent, high-quality supply of nitrogen gas for various industrial applications, eliminating the need for external sources. Experience the benefits of our cutting-edge technology that seamlessly combines simplicity, efficiency, and reliability in nitrogen generation.
Product Details

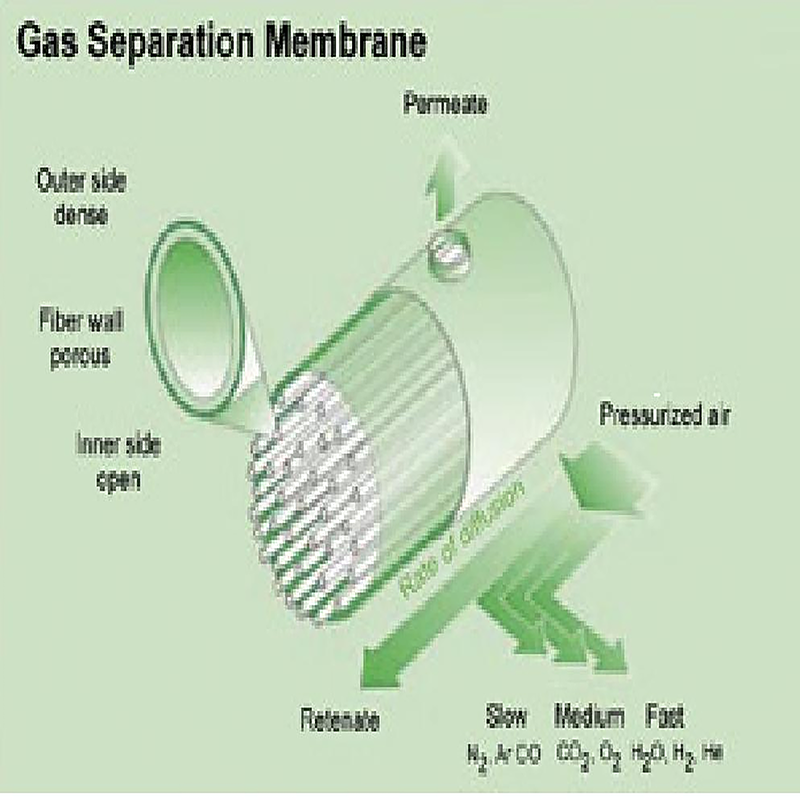

Due to permeability differences of each gas, when compressed air goes through the membrane units, oxygen passes through membrane walls to atmosphere, while nitrogen is collected at outlet as a product gas. Higher pressure leads to higher permeability of each gas.
| Model | Capacity (Nm3/h) | Oxygen purity | Low output pressure (bar) | High output pressure (bar) |
|---|---|---|---|---|
| YCNM-10 | 10 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-30 | 30 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-50 | 50 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-100 | 100 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-150 | 150 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-200 | 200 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-300 | 300 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-600 | 600 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-900 | 900 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-1200 | 1200 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-2500 | 2500 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-2500 | 2500 | 95%-99.9% | 5-10 | 150-350 |
| YCNM-4500 | 4500 | 95%-99.9% | 5-10 | 150-350 |
*customized models are available.
ADVANTAGES:
- Rapid nitrogen generation: obtain nitrogen in just 5-10 minutes
- User-friendly operation and minimal maintenance requirements
- Space-saving design with a compact footprint
- Highly durable modules designed to withstand high compressive forces
- Extended working lifetime exceeding 20 years
- Mobile container type available for flexible deployment
- Incorporation of high-efficiency US/Japan membrane modules with low decay rates
- Optional filling ramp for convenient nitrogen storage or backup supply
- Automatic venting of off-spec nitrogen to the atmosphere
- Remote monitoring and control capabilities via PC or mobile phone
- Built-in safety features for automatic shutdown in case of failure, power outage, or suboptimal purity levels
COMMERCIAL APPLICATIONS:
• Oil fields
• Offshore drilling
• Refinery
• Chemicals
• LNG
• Coal mine
• Fruit/vegetable storage
