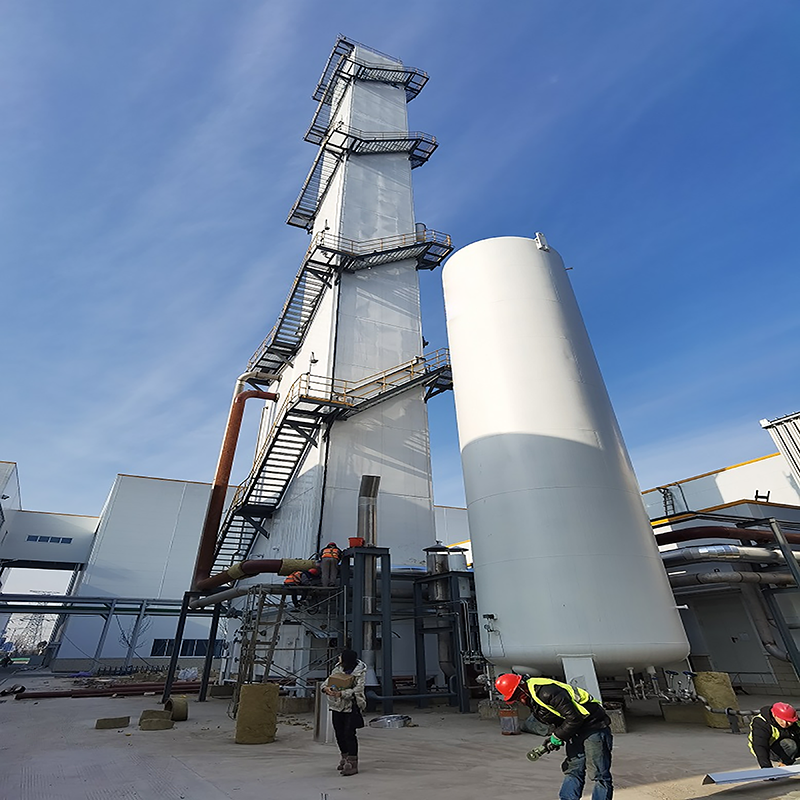

Cryogenic O2/N2/Ar plants
Features:
Our advanced Cryogenic O2/N2/Ar plants efficiently generate high-purity oxygen, nitrogen, and argon. They can produce oxygen alone or both oxygen and nitrogen in gas or liquid form.
The process involves purifying and cooling air to cryogenic temperatures, turning it into liquid air. The components are then separated through rectification in a fractionating column based on their different boiling points.
Rectification involves multiple stages of partial evaporation and condensation, gradually separating oxygen and nitrogen. The liquid becomes richer in oxygen at higher trays, while the vapor is richer in nitrogen.
Our plants optimize the rectification process for maximum efficiency and purity. The produced gases can be delivered in gaseous or liquid form, meeting diverse industrial needs.
Product Details
The main components of this cryogenic oxygen plant include:
Rectifying tower or cooling tower
Air compressor
Pre-cooler
Turbine expander
These key elements work together to efficiently produce high-purity oxygen through the cryogenic separation process.
ADVANTAGES:
- Substantial production capacity with economies of scale.
- Consistent high-quality gas performance.
- Reduced average unit energy consumption.
- Capability to produce high-purity gases.
- Enhanced stability, safety, and reliability through the use of a full low-pressure positive flow expansion process.
- Optimized design parameters through extensive simulations using ASPEN software.
- Improved tray rectification efficiency with aluminum sieve tray fractionation columns.
- Self-compensating pipeline layout based on stress analysis.
- Minimized leakage risk with aluminum welding structure for cold tower valves.
COMMERCIAL APPLICATIONS:
O2-
• Metals cutting factories
• Steel factories
• Glass factories
• Gases /oxygen companies
• Waste and water treatment
• Chemical factories
• Crystal/magnetic materials
• Concrete companies
• Carbonation/radiators/resins/acetylene/coal/alloy
N2-
• Plastics
• Coal chemical
• Fertilizer
• Refinery
• Oil and gas
• Power plant
• Coal mine
• Biofuel
• Metallurgy & heat treatment
| No | Model | Output | Capacities(Nm3/h) | Purities |
|---|---|---|---|---|
| 1. | KDON-50 | O2, N2 | 50, 100 | 99.6%, 99.99% |
| 2. | KDON-100 | O2, N2 | 100, 200 | 99.6%, 99.99% |
| 3. | KDON-200 | O2, N2 | 200, 400 | 99.6%, 99.99% |
| 4. | KDON-300 | O2, N2 | 300, 400 | 99.6%, 99.99% |
| 5. | KDON-500 | O2, N2 | 500, 1000 | 99.6%, 99.99% |
| 6. | KDON-700 | O2, N2 | 700, 1400 | 99.6%, 99.99% |
| 7. | KDON-1000 | O2, N2, Ar | 1000, 2000, 20 | 99.6%, 99.99%, 99.999% |
| 8. | KDON-2000 | O2, N2, Ar | 2000, 4000, 40 | 99.6%, 99.99%, 99.999% |
| 9. | KDON-3000 | O2, N2, Ar | 3000, 6000, 60 | 99.6%, 99.99%, 99.999% |
*Capacities of two or three above do not mean simultaneous output conditions but one gas at maximum.
